Electronics Telephone Talking Circuit
Telephone circuits

Electronics Telephone Talking Circuit

By internum


This is the basis of electronics telephone sets.

Electronics Telephone Talking Circuit
Electronics Telephone Talking Circuit

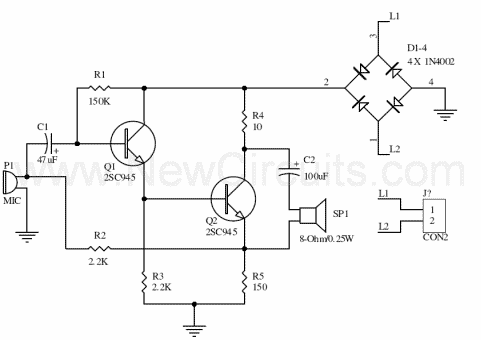

You can use it to replace the talking circuit of an old telephone set with new design, better noise rejection and reliability one. Also you can use it to build a telephone set without dial circuit to answer a call.

2909 22 August 2007
